StaticPowerController
Symbol |  |
|---|
Use
The StaticPowerController regulates the (electrical) power output for heating a boiler depending on the boiler temperature. This is a control unit that only switches the generator on and off completely.

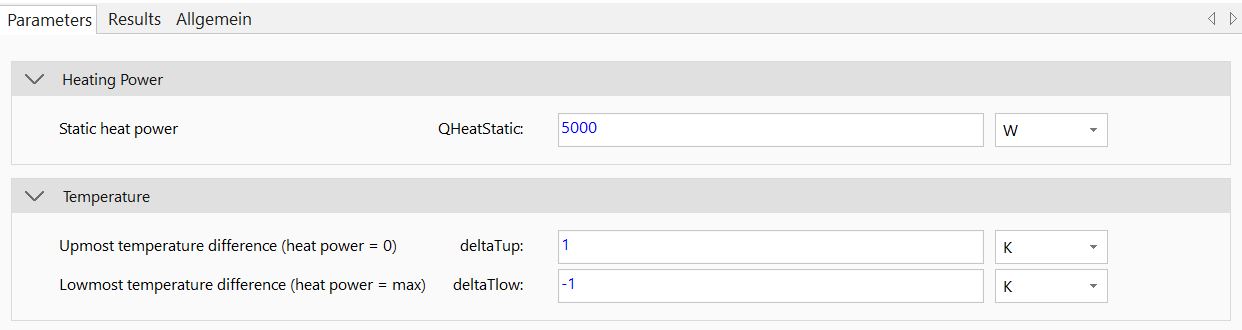

Parameters and Connectors
The boiler temperature must therefore be defined on the basis of the actual temperature (▶TAct) of a specific water layer. A reference temperature (▶TRef) is also required to define the controller output (▶PRef).
The output is defined in such a way that if the actual temperature falls below the reference temperature by deltaTlow, the power QHeatStatic is output until the reference temperature is exceeded by deltaTup.
Model Background

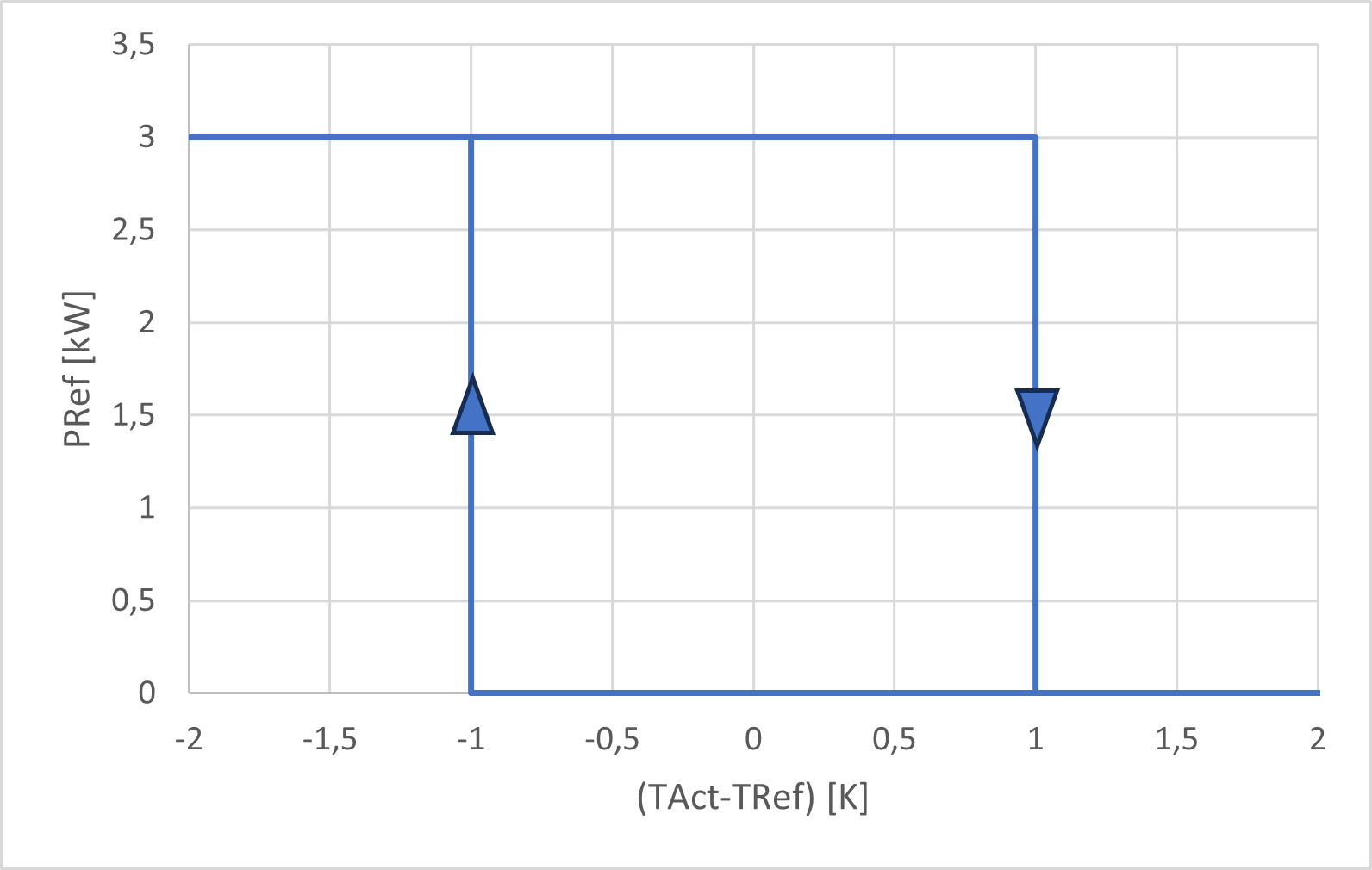

Here is a schematic representation of the control logic. In this case, QHeatStatic is 3 kW, deltaTlow = -1 K and deltaTup = 1 K.
