WindPark

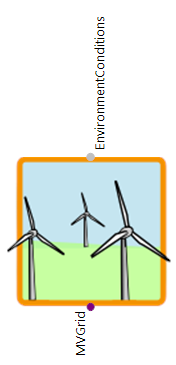

Symbol |  |
|---|
Use
The WindPark is a model for a variable number of wind turbines.
Parameters and Connectors

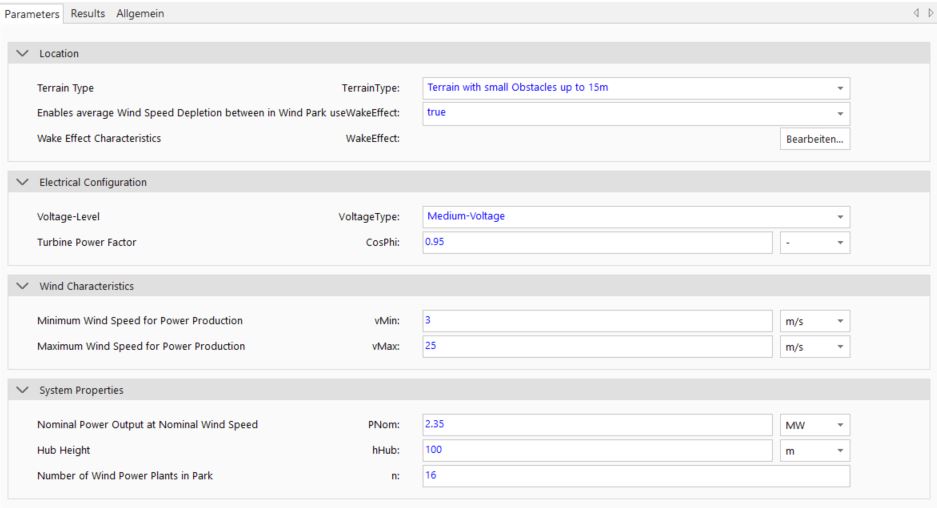

As with the wind turbine model, the ▶EnvironmentConditions and the connection for an AC grid (default ▶MVGrid) are also required here. Most of the parameters can therefore be adopted from this model. In addition, the model takes into account the wake effect of several wind turbines arranged offset one behind the other. A statistical value matrix is used to take this effect into account. The matrix used can be viewed and edited via the WakeEffect parameter. If this effect is not to be taken into account, the useWakeEffect parameter can be set to 'false'.
Model Background
The final calculation of the electrical power generated by a single wind turbine is supplemented by the calculation of the wake effect.
